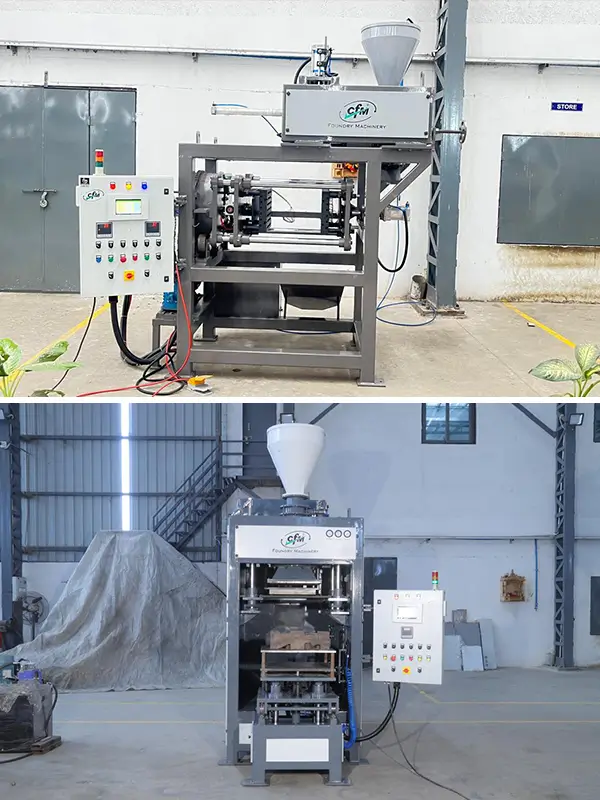

Very Rugged And Reliable Design.
The Die Changing Process Are Easy And Fast.
Induction Hardening, Chrome Plated Guide Bars Are Use In Die Mounting Plate Form.
Automatic Cores And Moulds Ejection System For Easily Remove Cores And Moulds.
The Same Machine Can Make Cores Or Shells. ( Only For Shell Core. )
Very Efficient Blow System, Less Blow Pressure Required.
The Sand Blowing Tank Is Specially Design For Work In Low Air Pressure.
Small And Thin Cores Can Be Made In This Machine.
Very Difficult Drawn, Small, And Multiple Cores Are Easily Make These Machine.
Excellent Machine For Making Hollow Cores.
Bottom Mandrel. ( Only For Vertical Parting )
P.L.C. ( Programmable Logic Controller) Controls The Auto Cycle. It Has Self Fault Diagnosis And Display Cycletime, Input, Output, Faults Etc.
Memory ( Recipe Management ) For Different Core Box Parameter Settings.
Daily Production Counting And Total Production Status On P L.C.
Indication of All Proximity Switches, Input And Output Status On P.L.C.
Multiple Shooting Facility In Auto Cycle. ( Only For Cold Core Shooter.)
Safety Interlocks Incorporated In The Control System.
Display of Operating Parameters On Screen of HMI.
High Resolution HD Such Screen HMI.
GAS GENERATOR (In Cold Box Core Shooter only)
The Heart Of Cold Box Core Shooter Is The Gas Generator.
Hot Air Works As A Carrier.
Amine Dosing By Volumetric Pump.
Adjustable Gassing And Purging Pressure.
The Liquid Amine Is Converted Into Gases State Before The Gassing Cycle Begins.
S.S. Amine Tank.
S.S. & Galvanized Pipe Fitting In Gassing System.
