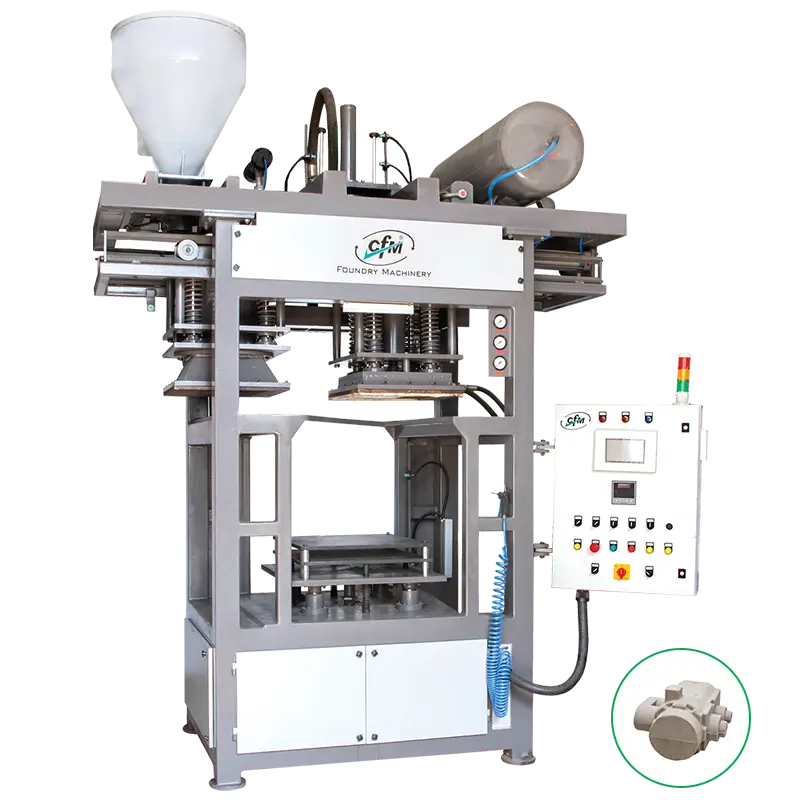

| Core Box Mounting Plate Size |
MM |
500 x 500 |
600 x 600 |
600 x 600 |
| Max. Tooling Size |
MM |
450 x 450 |
550 x 550 |
550 x 550 |
| Max. Core Weight |
KG |
12 |
15 |
25 |
| Opening Stroke |
MM |
500 |
500 |
550 |
| Core Box Thickness (mm) |
MIN. / MAX. |
80 / 200 |
80 / 200 |
100 / 225 |
| Shooting Capacity |
KG. |
Single shoot 12 kg. / Double shoot 20 kg. |
Single shoot 15 kg. / Double shoot 22 kg. |
Single shoot 25 kg. / Double shoot 45 kg. |
| Shooting Type |
– |
Multi |
Multi |
Multi |
| Shooting Technique |
– |
By means of shooting hole or candle shooting |
By means of shooting hole or candle shooting |
By means of shooting hole or candle shooting |
| Die Clamping |
– |
Hydraulic |
Hydraulic |
Hydraulic |
| Shooting Area |
MM |
225 x 225 |
350 X 350 |
400 x 400 |
| Multi Shooting Option |
– |
Yes |
Yes |
Yes |
| Max. Core Box Weight |
KG |
150 |
175 |
300 |
| Sand Hopper Capacity |
KG |
120 |
120 |
150 |
| Electric Heater |
HP |
1.5 |
2 |
2 |
| Machine Electric Load |
HP |
3 |
5 |
3 |
| Pneumatic Pressure Required |
KG. / CM |
7 to 8 |
7 to 8 |
7 to 8 |
| Machine Size (L x W x H) |
MM |
1200 x 1530 x 2900 |
1300 x 1730 x 2900 |
2300 x 1800 x 3500 |
